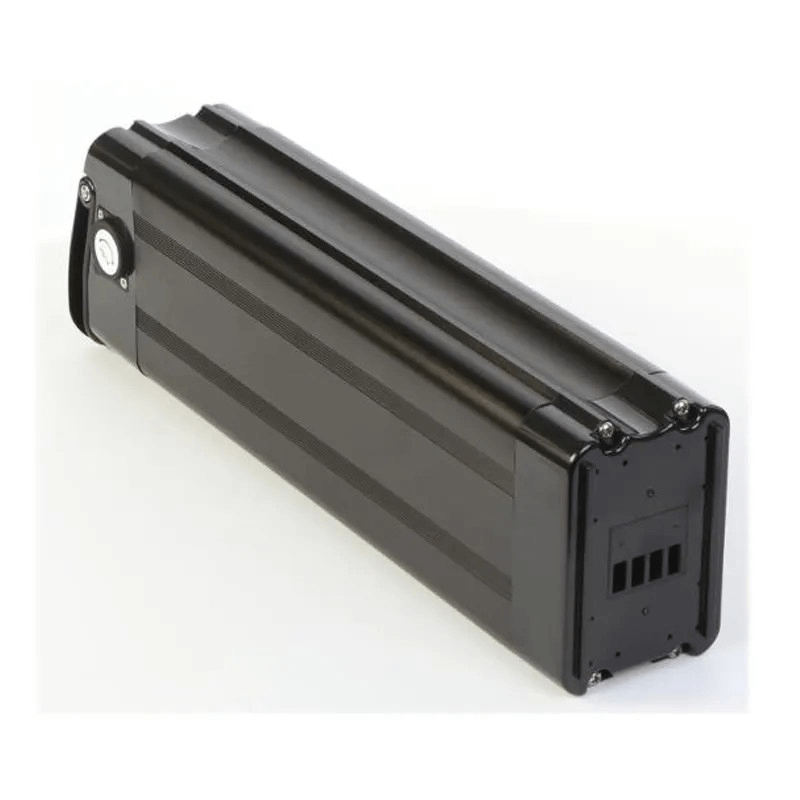

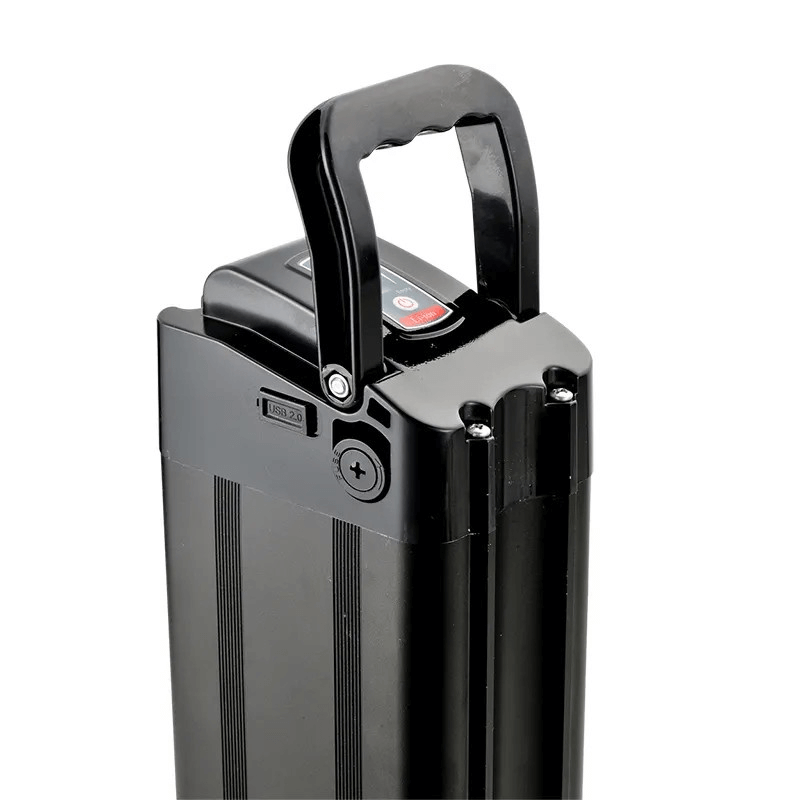

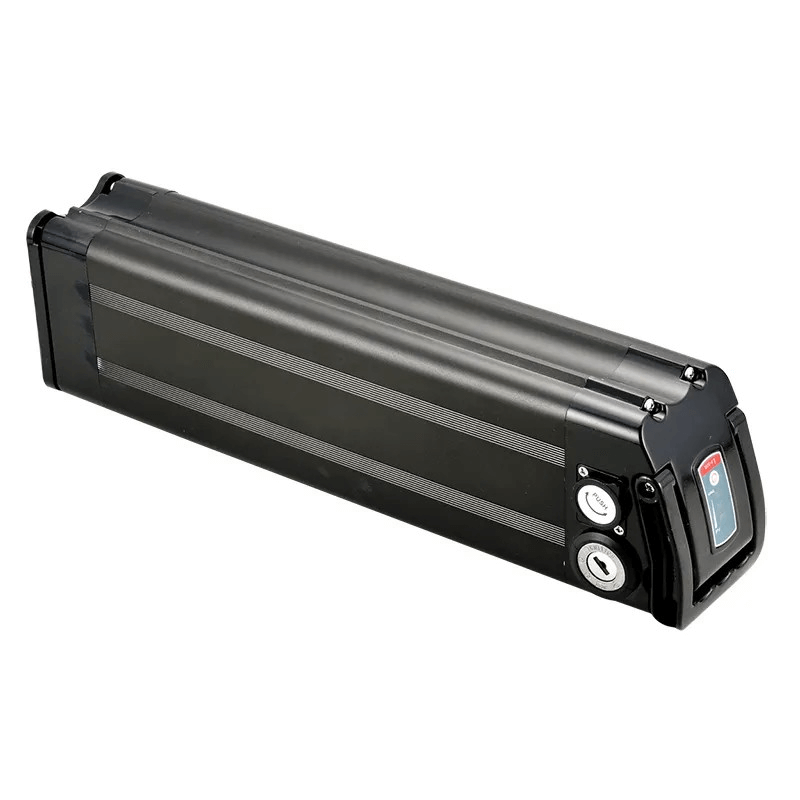

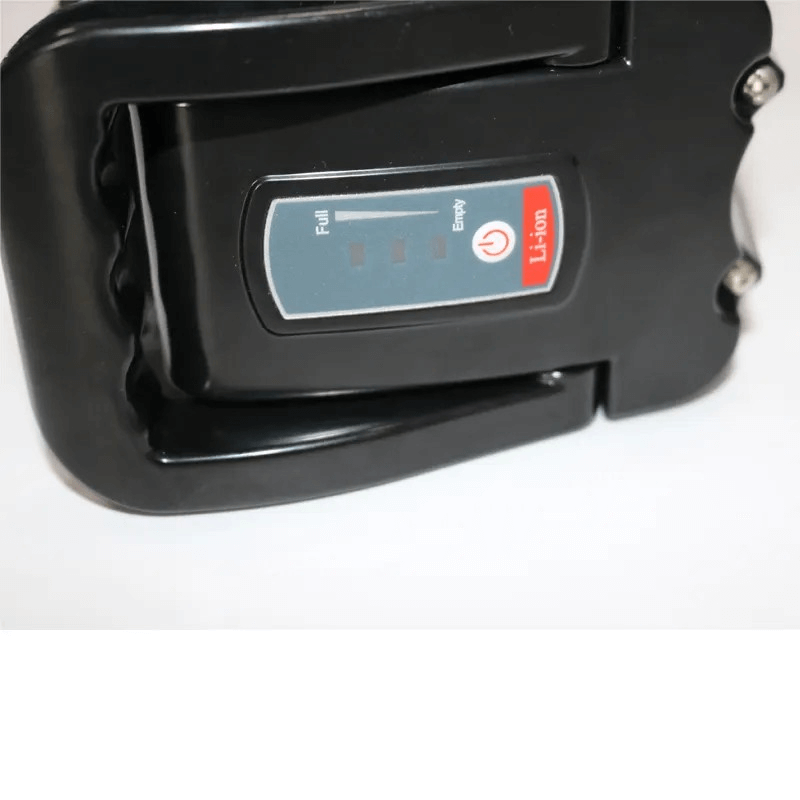

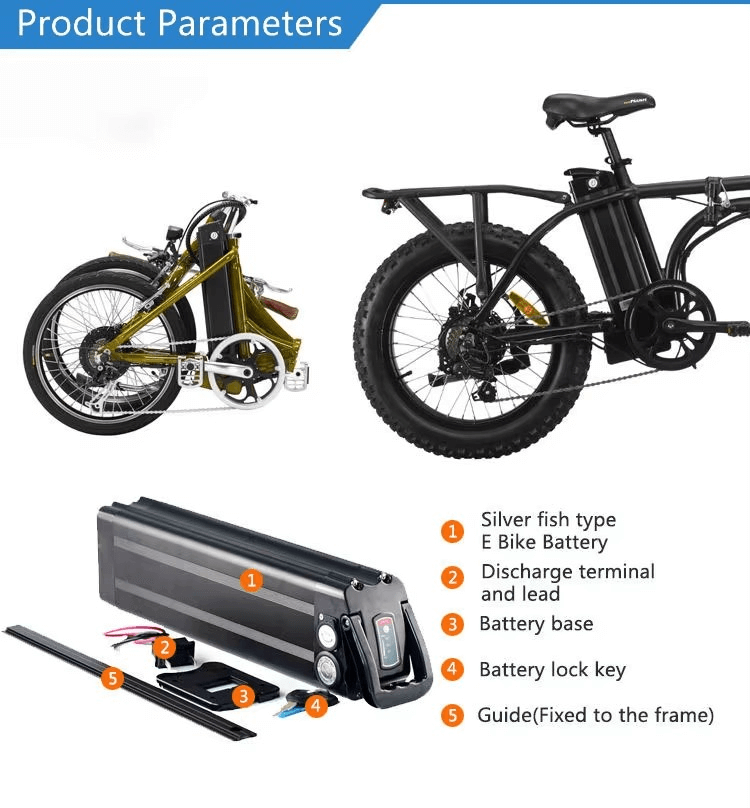

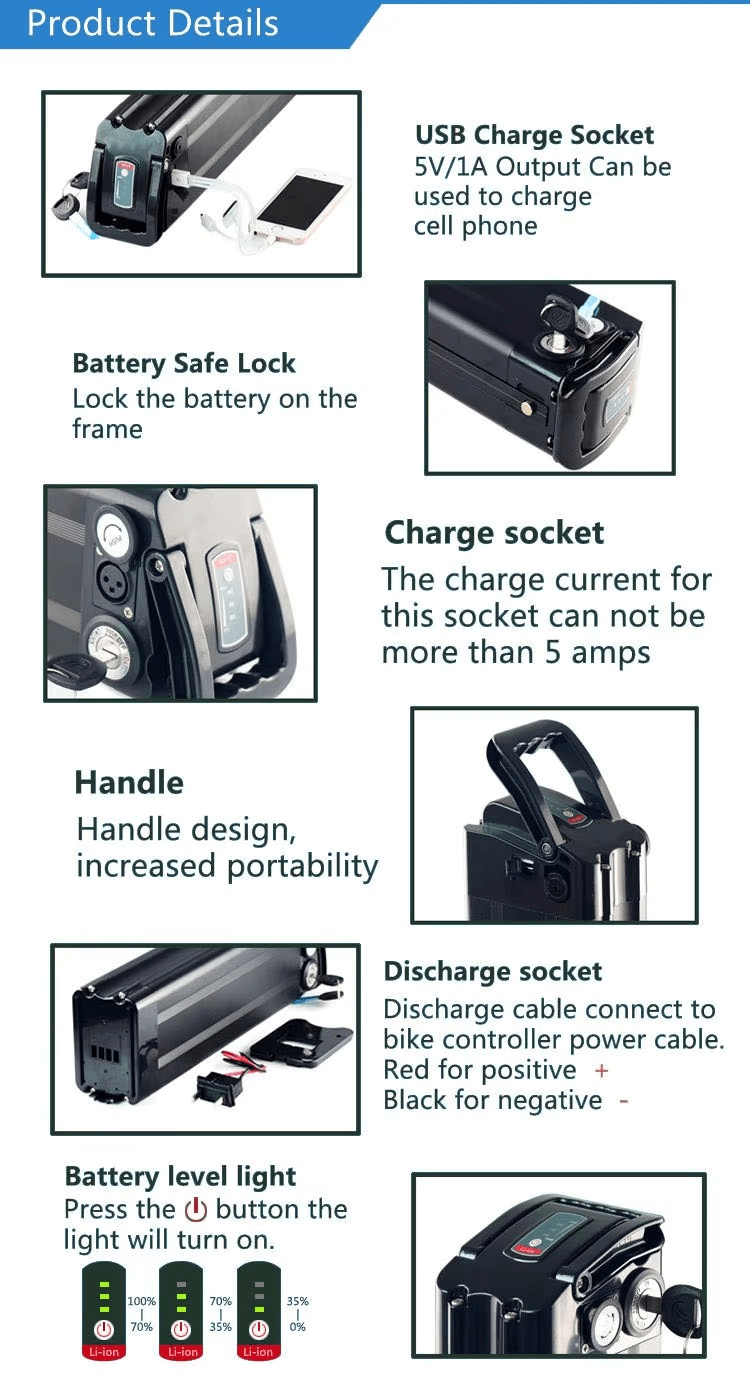

Rechargeable 48V 20Ah 1000W Silver Fish Lithium Battery Pack

2025-02-28 06:17

Технические характеристики

Пункт	Параметры
Номинальное напряжение	48В
Номинальная мощность	20Ah(can be customized)
BMS	20A （can be customized)
разрядка	normal current	1С
	Max continuous current	2C (≤5min)
	cut-off voltage	35.7V
Discharge port	bottom discharge, with 2pin plug
	(4pin plug/top discharge is available, please leave remarks if need)
Обвинение	normal charge current	0.5C
	Режим зарядки	CC/CV with professional charger
	cut-off voltage	54.6±0.1V
Charge port	XLR (DC5521, Lotus is available, please leave remarks or contact us while the order been placed)
Внутреннее сопротивление		≤80 мОм
	Discharging Inner resistance
Температура заряда	0℃~+45℃	When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.
Температура разряда	-20℃~+60℃
Диапазон влажности	RH≤85%
Функция защиты	Over charge protection,Over discharge protection,Over current protection,Balanced function
Материал корпуса	Aluminum alloy
вес	6,5±0,1 кг
Размер (Д * Ш * В)	495*110*75（mm）
Цикл жизни	Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500 cycles.( capacity retention rate≥80%)

Характеристики

* Longer life compared to Lead-Acid battery
* Over-Charging safety protection
* 60% more energy
* Over-Discharging safety protection
* Up to 70% weight savings
* Over-Current safety protection
* Easy to install and remove

* Short Circuit safety protection
* Faster charging times
*High Temperature safety protection
*100% available capacity
*Built-in safety protection BMS
* No fire, No explosions
*Eco-friendly, no pollution

Наш завод

почему выбрали нас

15+ years experience
Our R&D team has focused on power solutions and batteries customization for already 15 years by provided battery packs for the world famous companies in the field.
Quality guarantee
All batteries are produced according to the strictest industry standards. we've cooperated with brand cells like Samsung, LG, Panasonic, etc for all battery packs.
Worldwide after-sales service
Wherever you are we try the best to response to your complaints at the first time. and we provide full 12 months warranty after ex-factory.

Упаковка и доставка

Вопросы-Ответы

1,Q: What's the main product?

A: Power Wall Bank,Portable power supply,Lithium battery cell,charger,Golf cart batteries

2, Q: Что такое завышенная цена?

A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current then charge to 0.01C at CV mode. Observe changes in battery appearance.

3, Q: Что за разряд?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C.Observe changes in battery appearance

4, Q: Могу ли я заказать образец?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require

5, Q: у вас есть предел MOQ?

О: Да, у нас есть ограничение на минимальный объем заказа для массового производства, но это зависит от модели аккумулятора. Пожалуйста, свяжитесь с нами для уточнения деталей.

6, Q: как насчет времени выполнения заказа?

A: Samples will takes 5-7 business days. Mass production will takes 25-30 days.It depends on quantity.

7, Q: как насчет доставки и времени доставки?

A: Generally, battery will be shipped via Express,such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service. delivery time is 11-15 business days. Airline and sea shipping also available.

8, Q: как насчет послепродажного обслуживания?

A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions. Welcome to contact us for samples testing Orders.
